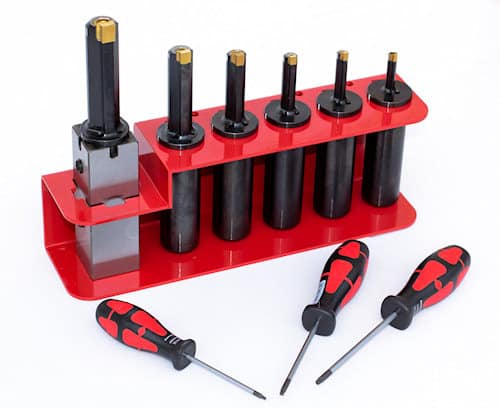

KIT OF 6 TOOLS FOR SLOTTERS REV

The Kit of 6 Tools for Slotting Machines is the solution that REV offers for anyone needing to execute keyway seatings in various sizes. This solution offers considerable savings in comparison to the expense of purchasing separate parts.

– KIT-STO-625
Kit of 6 REV insert holder tools for making keyways on the slotting machine.

It consists of:
• n° 6 insert holder tools diameter 25mm (UT-03,04,05,06,08,10)
• 1 AD-35 square adapter
• n° 12 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 3 resharpeners (RF-1, RF-2, RF-3)
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).

– KIT-STO-625-L
Kit of 6 REV insert holder tools for making keyways on the slotting machine.
It consists of:
• n° 6 insert holder tools long series diameter 25mm (UT-03,04,05,06,08,10)
• 1 AD-35 square adapter
• n° 12 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 3 resharpeners (RF-1, RF-2, RF-3)
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).

– KIT-STO-632
Kit of 6 REV insert holder tools for making keyways on the slotting machine.

It consists of:
• n° 6 insert holder tools diameter 32 mm (UT-03,04,05,06,08,10)
• 1 AD-40 square adapter
• n° 12 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 3 resharpeners (RF-1, RF-2, RF-3)
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).

– KIT-STO-632-L
Kit of 6 REV insert holder tools for making keyways on the slotting machine.
It consists of:
• n° 6 insert holder tools long series diameter 32 mm (UT-03,04,05,06,08,10)
• 1 AD-40 square adapter
• n° 12 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 3 resharpeners (RF-1, RF-2, RF-3)
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).
