KIT OF 7 TOOLS FOR CNC LATHES REV

The Kit of 7 Tools for CNC Lathes is the solution that REV offers for anyone needing to execute keyway seatings in various sizes.
This solution offers considerable savings in comparison to the expense of purchasing separate parts.

– KIT-LAT-725

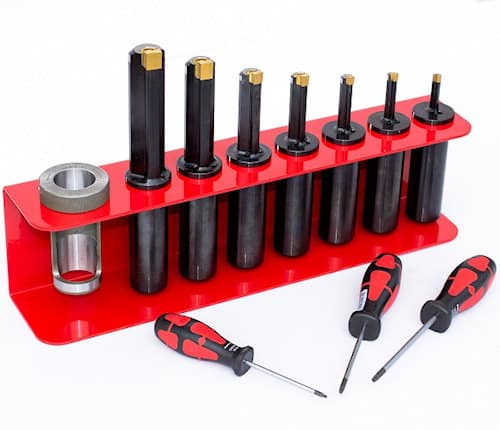

Kit of 7 REV insert holder tools for making keyways on a CNC lathe.

It consists of:
• n° 7 insert holder tools diameter 25 mm (UT-03,04,05,06,08,10,12)
• n° 1 eccentric bushing to be chosen between B-32 and B-32-VDI
• n° 14 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 3 resharpeners (RF-1, RF-2, RF-3)
• n° 1 screw with ball terminal chosen from BU-1, BU-2, BU-3, BU-4, BU-5, BU-6
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).

– KIT-LAT-725-L
Kit of 7 REV insert holder tools for making keyways on a CNC lathe.

It consists of:
• n° 7 insert holder tools long series diameter 25 mm (UT-03,04,05,06,08,10,12)
• n° 1 eccentric bushing to be chosen between B-32 and B-32-VDI
• n° 14 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 3 resharpeners (RF-1, RF-2, RF-3)
• n° 1 screw with ball terminal chosen from BU-1, BU-2, BU-3, BU-4, BU-5, BU-6
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).

– KIT-LAT-732
Kit of 7 REV insert holder tools for making keyways on a CNC lathe.

It consists of:
• n° 7 insert holder tools diameter 32 mm (UT-03,04,05,06,08,10,12)
• n° 1 eccentric bush to be chosen among B-40,B-50,B-60. normal or VDI version
• n° 14 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 3 resharpeners (RF-1, RF-2, RF-3)
• n° 1 screw with ball terminal chosen from BU-1, BU-2, BU-3, BU-4, BU-5, BU-6
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).

– KIT-LAT-732-L
Kit of 7 REV insert holder tools for making keyways on a CNC lathe.

It consists of:
• n° 7 insert holder tools long series diameter 32 mm (UT-03,04,05,06,08,10,12)
• n° 1 eccentric bush to be chosen among B-40,B-50,B-60. normal or VDI version
• n° 14 inserts (2 for each tool size with tolerance class chosen from the standard ones in the catalogue)
• n° 3 resharpeners (RF-1, RF-2, RF-3)
• n° 1 screw with ball terminal chosen from BU-1, BU-2, BU-3, BU-4, BU-5, BU-6
• n° 1 tool holder base in painted steel
• 3 Torx screwdrivers (T08, T15, T20).
