PUSH-TYPE KEYWAY BROACHES

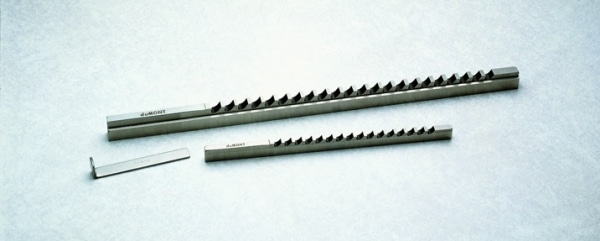

STANDARD BROACHES FOR KEYWAY

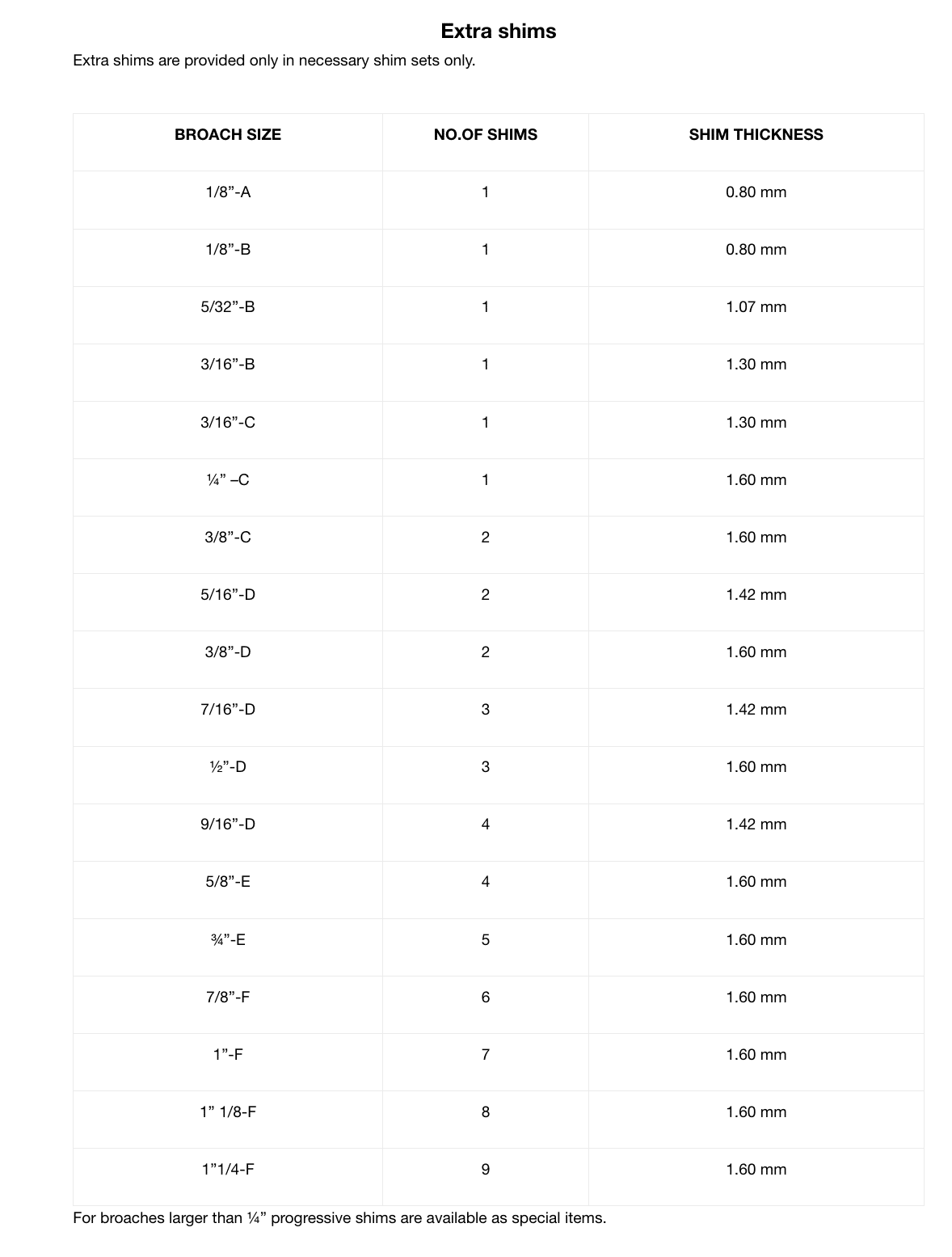

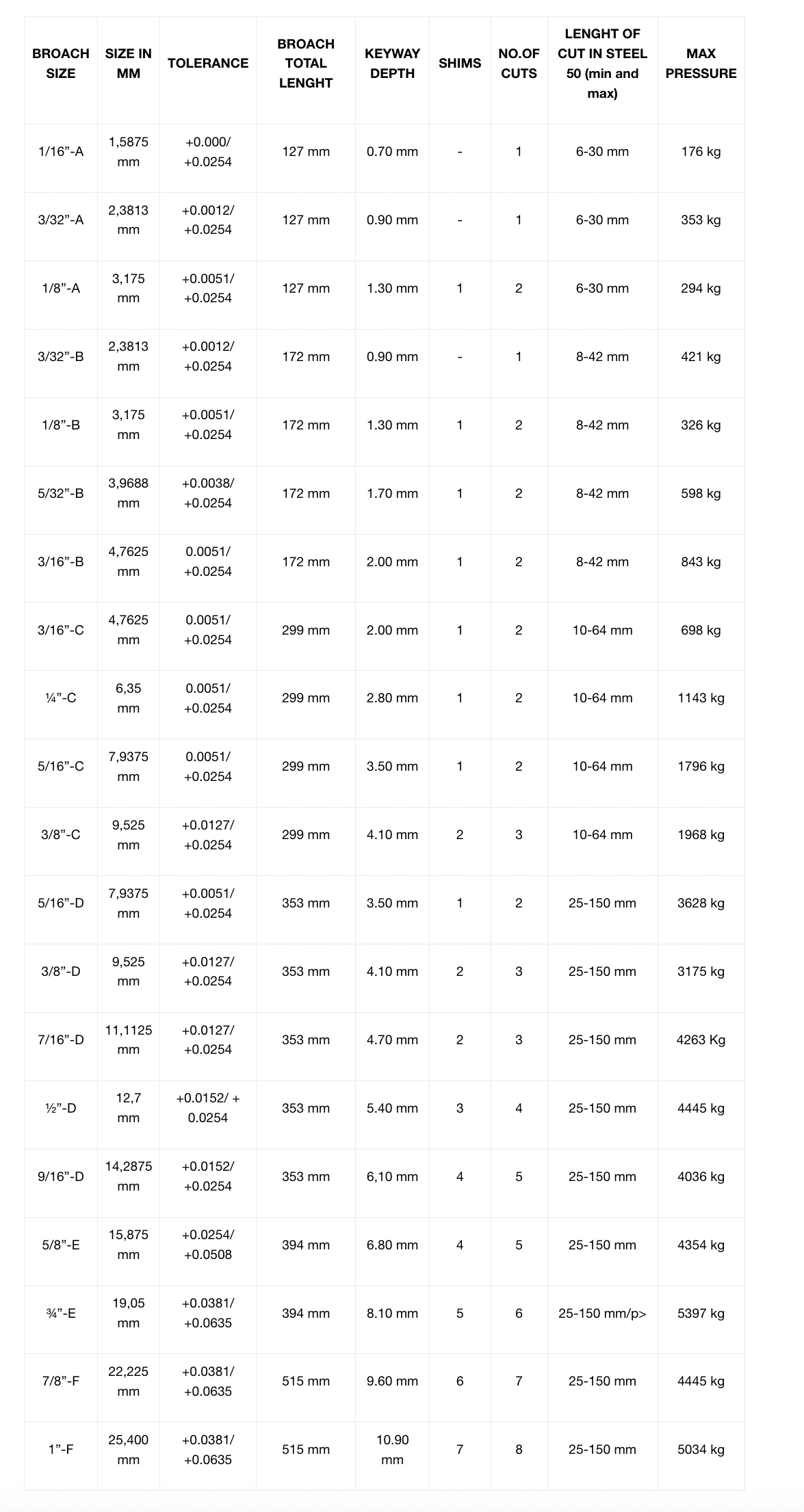

STANDARD BROACHES FOR KEYWAY – INCH SIZES

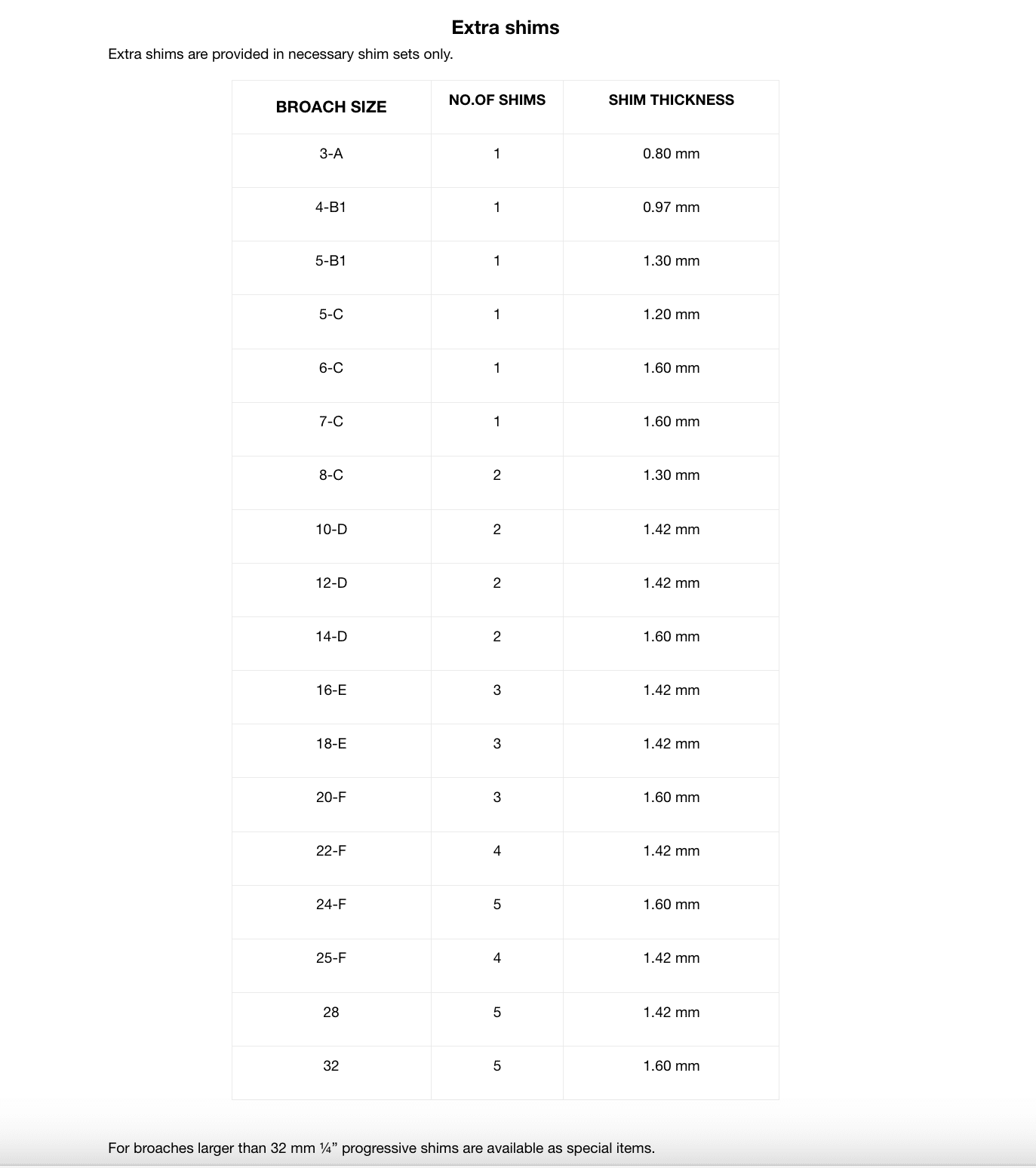

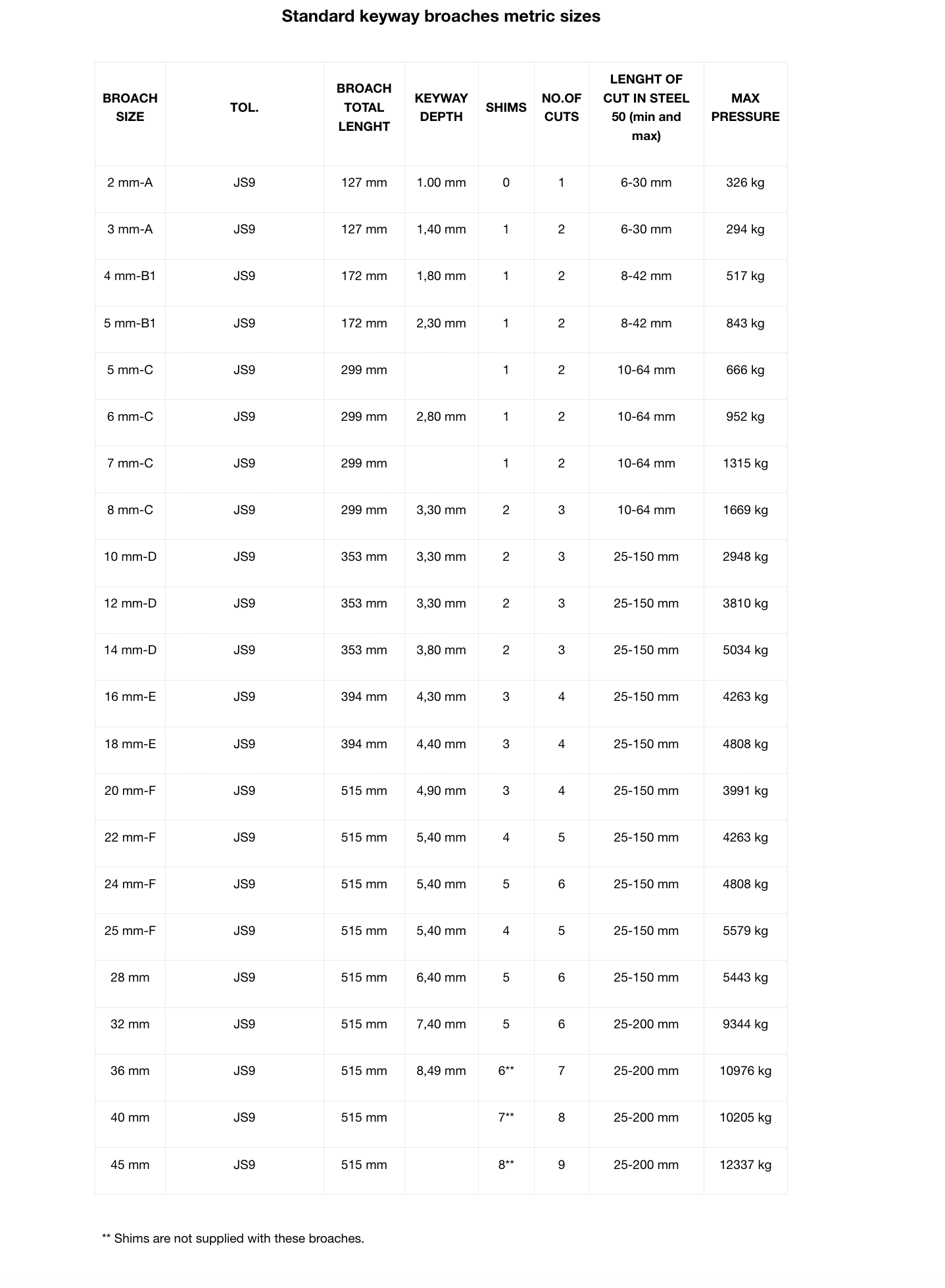

STANDARD BROACHES FOR KEYWAY – METRIC SIZES

The keyway broaches made of HSS in toleranceJS9, P9, H9 according to DIN 6885 are furnished with shims and for the use on materials up to HRC30/BR285.

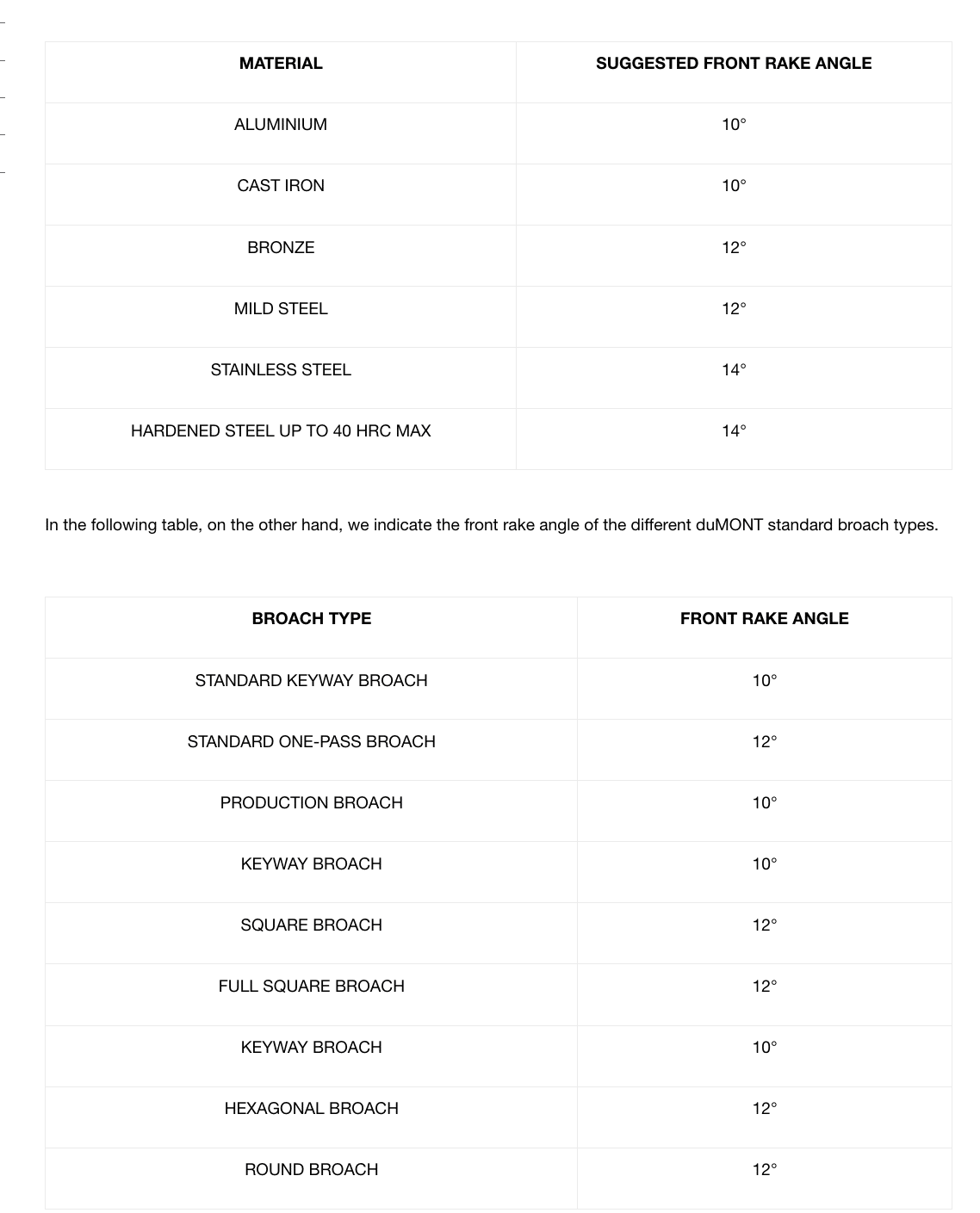

Following a table that indicates the front rake angle suggested secondly the kind of material that must be machined.
