SPECIAL BROACHES FOR TOOTHED PROFILES

We can produce special broaches for holes or surface profiles.

If you did not find in this catalogue the kind of broach you are interested in, please send email to [email protected] with this information. We will answer you as soon as possible.

  • Material to broach

  • Special broach for

    • Internal form

    • Exteral form

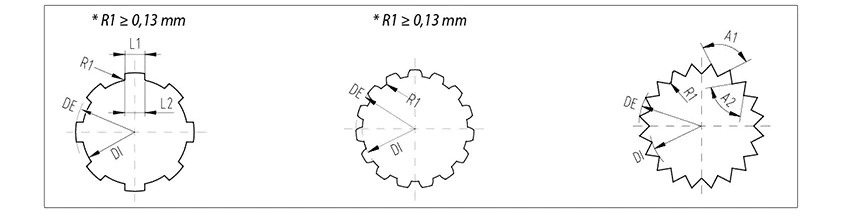

  • Spline broach

    • N° of teeth (Z)

    • Inside diameter (DI)

    • Outside diameter (DE).

    • Measure of the teeth on DE(L1).

    • Measure of the teeth on DI (L2)

    • External Radius (R1)

    • Internal Radius (R2)

  • Involute broach

    • N° of teeth (Z)

    • Inside diameter (DI)

    • Outside diameter (DE).

    • Module (M).

    • Pressure angle.

    • External Radius (R1).

    • Internal Radius (R2)

  • Serration broach

    • N° of teeth (Z)

    • Inside diameter (DI)

    • Outside diameter (DE)

    • External Radius (R1)

    • Internal Radius (R2)

    • Angle between teeth (Al).

    • Angle of the tooth (A2)
